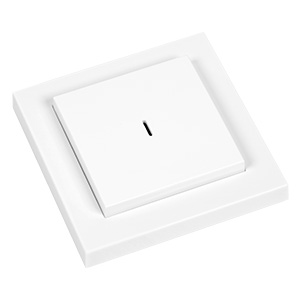

The STH01 transmits the current measured values for temperature and humidity every 10 minutes. In addition, the manual transmission of the measured values is possible at any time by pressing the front button.

The transmitted values can then be processed by the APC01 Control Center and used in moods.
Based on this, for example the room climate can be controlled automatically via the Smarthome Server in connection with thermostats, shutters or fans.

In addition, the STH01 has a battery control function. If the capacity of the battery is low, this is signaled on the device by an LED and transmitted to the Smarthome Server.

The STH01 can not be operated without the Control Center APC01!

STH01EN5001A01-02K
Technical specifications
Coding Easywave neo
Frequency 868,30 MHz
Channels 1
Range typically 150 m in good free-field conditions
Power supply 1x 3V batteries CR2032
Humidity
measurement range
20% to 80% rF ±5 % rF
Temperature measurement range 0 °C to +60 °C ±1 °C
Transmission of measured values every 10 minutes or when a transmitter button is pressed
Function measuring and transmitting temperature and air humidity values
Operating temperature -20 °C to +60 °C
Dimensions rocker: 55 x 55 x 9 mm
mounting plate: 71 x 71 x 1.5 mm
cover frame: 80 x 80 x 9,4 mm
Weight 34,0 g (including battery)
Color white similar to RAL 9003
Scope of delivery
  • Temperature humidity sensor
  • Battery
  • Mounting plate
  • Cover frame
  • Mounting material
  • Operating manual
Accessories (optional)
RTS22-ACC-01-01P Mounting plate, white
RTS22-ACC-05 Cover frame single, Format 55, white

RTS22-ACC-01-01P

RTS22-ACC-05
Models
Product numbers Description
STH01EN5001A01-02K Temperature humidity sensor, Easywave, 1x DATA, for server, Format 55, white
Compatibility
The term Format 55 indicates that the products are compatible with cover frames which have a cut-out dimension of 55 x 55 mm, as listed below.
ManufacturerProducts (Brands)
BERKER B1
B3
B7 Glas
S1
GIRA E2
Event
Esprit
Standard55
JUNG A500
AS500
A Creation
Aplus
MERTEN M-Arc
M-Plan
M-Smart
M-Star
ELSO JOY
RIVA with combination frame 55
SCALA with combination frame 55
FASHION with combination frame 55
Names, terms and emblems may be registered trademarks or brands of the respective company / right holder
