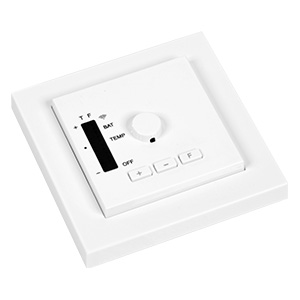

The ST02 is a battery-powered radio thermostat for regulating temperature in conservatories.

If deviations from the desired set-point temperature are detected, the appropriate switching signals are transmitted to the radio receiver via Easywave radio telegram. The receiver then switches connected fans, air conditioning units or shading systems in conservatories for example.

The sensor can be integrated into cover frames with a cut-out dimension of 55 x 55 mm produced by various manufacturers.

ST02E5001-01-02K
Technical specifications
Coding factory coding with Easywave telegram
Frequency 868,30 MHz
Channels 1
Range typically 150 m in good free-field conditions
Power supply 2x 3V batteries CR2032
Function measuring and transmitting temperature data
ON/OFF
Control range approx. +14 °C to approx. +25 °C
Operating temperature -20 °C to +40 °C
Dimensions cover: 55 x 55 x 9 mm
mounting plate: 71 x 71 x 1.5 mm
cover frame: 80 x 80 x 9,4 mm
Weight 36,0 g (including batteries)
Color white similar to RAL 9003
Scope of delivery
  • Temperature sensor
  • 2 batteries
  • Mounting plate
  • Cover frame
  • Adhesive pad
  • Operating manual
Accessories (optional)
RTS22-ACC-01-01P Mounting plate, white
RTS22-ACC-05 Cover frame single, Format 55, white

RTS22-ACC-01-01P

RTS22-ACC-05
Models
Product numbers Description
ST02E5001-01-02K Temperature sensor, Easywave, 1x ON/OFF, cooling, Format 55, white
Compatibility
The term Format 55 indicates that the products are compatible with cover frames which have a cut-out dimension of 55 x 55 mm, as listed below.
ManufacturerProducts (Brands)
BERKER B1
B3
B7 Glas
S1
GIRA E2
Event
Esprit
Standard55
JUNG A500
AS500
A Creation
Aplus
MERTEN M-Arc
M-Plan
M-Smart
M-Star
ELSO JOY
RIVA with combination frame 55
SCALA with combination frame 55
FASHION with combination frame 55
Names, terms and emblems may be registered trademarks or brands of the respective company / right holder
